SSOP ZIF Socket to SSOP Surface Mount Component Site Adapters


This is a two part adapter kit providing a way to temporarily plug SMT surface mount components to a circuit card under test. The bottom part (SMT base), is surface mounted to the PCB and replaces the component normally soldered to the PCB card solder pads. The top part plugs into the SMT base and has ZIF socket to hold the SMT component.

Adapters are listed in ascending pin count order.

14 Pins 16 Pins 20 Pins
24 Pins 28 Pins 32 Pins
36 Pins 52 Pins 54 Pins
66 Pins


Part Number Click enlarge 14 Pin SMT Adaper    Price Shopping Cart
14SSOS17-SSOS-ZO-SD ZIF open top socket to SMT pads for 14 lead SSOP package ZIF open top socket to SMT pads for 14 lead SSOP package.
  • 14 Pins SSOP Package
  • Package width 173 mils
  • Pitch 25.6 mils (0.65mm)
  • Tip to tip 0.246 - 0.258 mils
  • Spare SMT base is part number 14SSOS17-SD
  • Adapter vertical clearance 460 mils
$130.00

Part Number Click enlarge 16 Pin SMT Adaper    Price Shopping Cart
16SSOS17-SSOS-ZO-SD ZIF open top socket to SMT pads for 16 lead SSOP package. ZIF open top socket to SMT pads for 16 lead SSOP package.
  • 16 Pins SSOP Package
  • Pitch 25.6 mils (0.65mm)
  • Package width 173 mils
  • Tip to tip 0.246 - 0.258 mils
  • Replacement plug-in ZIF socket is 676-3160111
  • Spare SMT base is part number 16SSOS17-SD
  • Adapter vertical clearance 460 mils
$140.00
16SSOS21-SSOS-ZO-SD ZIF open top socket to SMT pads for 16 lead SSOP package. ZIF open top socket to SMT pads for 16 lead SSOP package.
  • 16 Pins SSOP Package
  • Pitch 0.65mm (25.6 mils)
  • Package body width 5.3mm (209 mils)
  • Tip to tip 7.8mm (244 mils)
  • Replacement plug-in ZIF socket is 656C1162211
  • Spare SMT base is part number 16SSOS21-SD
  • Adapter vertical clearance 460 mils
$140.00
16D3-SSOS21-SD   16 Pin DIP to 20 pad SSOP circuit board pads. SDIP pins to pads are wired one-to-one. 16 Pin DIP to 20 pad SSOP circuit board pads. SDIP pins to pads are wired one-to-one.
  • 16 Pin SSOP Surface mount pads
  • Female DIP rows are 300 mils apart
  • Pins and pads are wired 1 to 1
  • Surface mount base
    • Pitch 0.65mm (0.025")
    • Body width maximum 5.84mm (0.230")
    • Tip-to-tip maximum 6.86 (0.270")
    • Spare SMT base is part number 16SSOS21-SD
$40.00

Part Number Click enlarge 20 Pin SMT Adaper    Price Shopping Cart
20D3-SSOS21-SD   20 Pin DIP to 20 pad SSOP circuit board pads. SDIP pins to pads are wired one-to-one. 20 Pin DIP to 20 pad SSOP circuit board pads. SDIP pins to pads are wired one-to-one.
  • 20 Pin SSOP Surface mount pads
  • Female DIP rows are 300 mils apart
  • Pins and pads are wired 1 to 1
  • Surface mount base
    • Pitch 0.65mm (0.025")
    • Body width maximum 5.84mm (0.230")
    • Tip-to-tip maximum 6.86 (0.270")
    • Spare SMT base is part number 20SSOS21-SD
$40.00

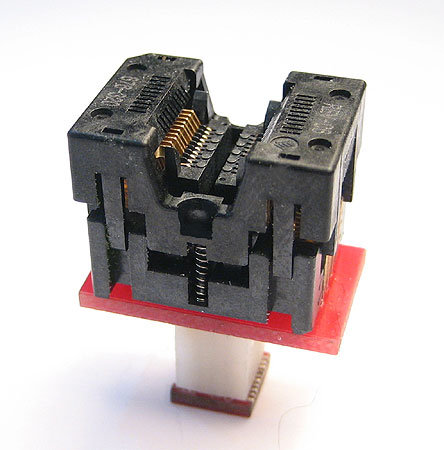

20SSOS17-SSOS-ZO-SD ZIF open top socket to SMT pads for 20 lead SSOP package. ZIF open top socket to SMT pads for 20 lead SSOP package.
  • 20 Pins SSOP Package
  • Pitch 25.6 mils (0.65mm)
  • Package width 173 mils
  • Spare SMT base is part number 20SSOS17-SD
  • Adapter vertical clearance 460 mils
$140.00
20SSOS21-SSOS-ZO-SD-S ZIF open top socket to SMT pads for 20 lead SSOP package. ZIF open top socket to SMT pads for 20 lead SSOP package.
  • 20 Pins SSOP Package
  • Pitch 0.65mm (25.6 mils)
  • IC tip to tip 7.8mm
  • IC Package width 5.3mm (208 mils)
  • IC Package length 7.2mm (283 mils)
  • Socket is a Boyd 656C1202211
  • Spare SMT base is part number 20SSOS21-SD
  • Adapter vertical clearance 460 mils
$140.00
20SSOS21-SSOS-ZO-SD-E ZIF open top socket to SMT pads for 20 lead SSOP package. ZIF open top socket to SMT pads for 20 lead SSOP package.
  • 20 Pins SSOP Package
  • Pitch 0.65mm (25.6 mils)
  • IC tip to tip 6.4mm (252 mils)
  • IC Package width 4.4mm (173 mils)
  • IC Package length 6.5mm (256 mils)
  • Socket is a Enplas OTS-34-0.65-01
  • Spare SMT base is part number 20SSOS21-SD
  • Adapter vertical clearance 460 mils
$140.00

Part Number Click enlarge 24 Pin SMT Adaper    Price Shopping Cart
24SSOS17-SSOS-ZO-SD ZIF open top socket to SMT pads for 24 lead SSOP package. ZIF open top socket to SMT pads for 24 lead SSOP package.
  • 24 Pins SSOP Package
  • Pitch 25.6 mils (0.65mm)
  • Package width 173 mils
  • Spare SMT base is part number 24SSOS17-SD
  • Adapter vertical clearance 460 mils
$150.00
24SSOS21-SSOS-ZL-SD   ZIF Clamshell socket to SMT pads for 24 lead SSOP package.
  • 24 Pins SSOP Package
  • 0.65mm (0.25.6 mil) Pitch device
  • 8.7mm (343 mil) Leads Tip to tip
  • 5.8mm (228 mil) Package body width
  • Spare SMT base is part number 24SSOS21-SD
  • Adapter vertical clearance 460 mils
$180.00
24SSOS21-SSOS-ZO-SD ZIF open top socket to SMT pads for 24 lead SSOP package. ZIF open top socket to SMT pads for 24 lead SSOP package.
  • 24 Pins SSOP Package
  • Pitch 25.6 mils (0.65mm)
  • Package width 208 mils
  • Spare SMT base is part number 24SSOS21-SD
  • Adapter vertical clearance 460 mils
$150.00

Part Number Click enlarge 28 Pin SMT Adaper    Price Shopping Cart
28SSOS17-SSOS-ZO-SD 28 Pin ZIF open top socket to SMT pads for 28 lead SSOP package. 28 Pin ZIF open top socket to SMT pads for 28 lead SSOP package.
  • 28 Pins SSOP Package
  • 4.4mm (173 mil) Package body width
  • 6.4mm (252 mil) Leads Tip to tip
  • 9.7mm (382 mil) Package body length
  • 0.65mm (25.6 mil) pitch
  • Compatible SOP IC Package Drawing
  • Spare SMT base is part number 28SSOS17-SD
  • Adapter vertical clearance 460 mils
$160.00
28SSOS21-SSOS-ZO-SD ZIF open top socket to SMT pads for 28 lead SSOP package. ZIF open top socket to SMT pads for 28 lead SSOP package. $160.00
28SSOS24-SSOS-ZO-SD ZIF open top socket to SMT pads for 28 lead SSOP package. ZIF open top socket to SMT pads for 28 lead SSOP package.
  • 28 Pins SSOP Package
  • Pitch 0.65mm (25.6 mils)
  • 6.1mm (240 mils) Body width
  • 8.2mm (319 mils) Tip to tip
  • 9.7mm (382 mils) Body length
  • Spare SMT base is part number 28SSOS24-SD
  • Adapter vertical clearance 460 mils
$160.00

Part Number Click enlarge 32 Pin SMT Adaper    Price Shopping Cart
32SSOS21-SSOS-ZO-SD   ZIF open top socket to SMT pads for 32 lead SSOS package.
  • 32 Pins SSOS Package
  • Package width 300 mils
  • Spare SMT base is part number 32SSOS21-SD
  • Adapter vertical clearance 460 mils
$180.00
32SS0S24-SSOS-ZO-SD ZIF open top socket to SMT pads for 32 lead SSOS package. ZIF open top socket to SMT pads for 32 lead SSOS package.
  • 32 Pins SSOS Package
  • For IC
  • 8.1mm (319 mil) Leads Tip to tip
    • 6.10mm (240 mil) Chip body width
    • 9.7mm (433 mil) Body length
    • 0.65mm (26 mil) pitch
  • Spare SMT base is part number 32SSO24-SD
  • Adapter vertical clearance 460 mils
$180.00
32SS0S30-SSOS-ZO-SD ZIF open top socket to SMT pads for 32 lead SSOS package. ZIF open top socket to SMT pads for 32 lead SSOS package.
  • 32 Pins SSOS Package
  • Package width 300 mils
  • Spare SMT base is part number 32SSO30-SD
  • Adapter vertical clearance 460 mils
$180.00

Part Number Click enlarge 36 Pin SMT Adaper    Price Shopping Cart
36SS0S43-SSOS-ZO-SD ZIF open top socket to SMT pads for 36 lead SSOP package. ZIF open top socket to SMT pads for 36 lead SSOP package.
  • 36 Pins SSOP Package
  • Pitch 0.065mm (0.0256 inch)
  • Tip to tip 13.89 to 14.50 (0.547 to 0.571)
  • Package width 10.90 to 11.10mm (0.429 to 0.437 inch)
  • Package lenght 15.80 to 16.00mm (0.622 to 0.630 inch)
  • Spare SMT base is part number 36SSOS43-SD
  • Replacement ZIF socket is 678-2364211-001
  • Adapter vertical clearance 460 mils
$180.00

Part Number Click enlarge 52 Pin SMT Adaper    Price Shopping Cart
52SSOS30-SSOS-ZO-SD ZIF open top socket to SMT pads for 52 lead SSOP package. ZIF open top socket to SMT pads for 52 lead SSOP package.
  • 52 Pins SSOP Package
  • 0.65mm pitch
  • 10.3mm (400 mils) Tip to Tip
  • 7.5mm (300 mils) Body width
  • Spare SMT base is part number 52SSO30-SD
  • Adapter vertical clearance 460 mils
$230.00

Part Number Click enlarge 54 Pin SMT Adaper    Price Shopping Cart
54SSOS30-SSOS-ZO-SD ZIF open top socket to SMT pads for 54 lead SSOP package. ZIF open top socket to SMT pads for 54 lead SSOP package.
  • SSOP Package
  • 54 Pad & Pins
  • 0.65mm (26 mil) pitch
  • Tip to Tip 10.3mm (406 mil)
  • Package width 10.2mm (402 mils)
  • Spare SMT base is part number 54SSOS30-SD
  • Adapter vertical clearance 460 mils
$230.00
54SSOS40-SSOS-ZO-SD ZIF open top socket to SMT pads for 54 lead SSOP package. ZIF open top socket to SMT pads for 54 lead SSOP package.
  • SSOP Package
  • 54 Pad & Pins
  • 0.65mm (26 mil) pitch
  • 11.8mm (465 mil)Tip to Tip
  • Package width 10.2mm (402 mils)
  • Spare SMT base is part number 54SSOS40-SD
  • Adapter vertical clearance 460 mils
$230.00

Part Number Click enlarge 66 Pin SMT Adapter    Price Shopping Cart
66SSOS40-SSOS-ZO-SD   ZIF open top socket to SMT pads for 66 lead SSOP package. ZIF open top socket to SMT pads for 66 lead SSOP package.
  • 66 Pins SSOP Package
  • Tip to tip 11.8mm +/-0.15 (465 mils)
  • Pitch 0.65mm (25.6 mils)
  • Package width 10.2mm +/-0.05 (400 mils)
  • Package length 22.4 (882 mils)
  • Spare SMT base is part number 66SSOS40-SD
  • Adapter vertical clearance 460 mils
$240.00
