IC Surface Mount to Breadboard Adapters

TSOP ZIF Socket to TSOP Surface Mount Component Site Adapters

This is a two part adapter kit providing a way to temporarily plug SMT surface mount components to a circuit card under test. The bottom part (SMT base), is surface mounted to the PCB and replaces the component normally soldered to the PCB card solder pads. The top part plugs into the SMT base and has ZIF socket to hold the TSOP component.

Adapters are listed in ascending pin count order.

10 Pins 28 Pins 32 Pins 38 Pins 40 Pins 48 Pins 56 Pins 64 Pins


Part Number Click Enlarge 10 Pin Adapters    Price Shopping Cart
10TS05-TS-ZO-SD-V ZIF open top socket to SMT pads for 10 lead TSOP package. ZIF open top socket to SMT pads for 10 lead TSOP package. $120.00

Part Number Click Enlarge 28 Pin Adapters    Price Shopping Cart
28TS14-TS-ZO-SD ZIF open top socket to SMT pads for 28 lead TSOP package. ZIF open top socket to SMT pads for 28 lead TSOP package.
  • 28 Pins TSOP Type 1 Package
  • 14.0 mm Tip to tip
  • 0.55mm (22 mils) pitch
  • Wired 1 to 1
  • Socket is Boyd (Wells-CTI) number is 648-1282211
  • Spare SMT base is part number 28TS14-SD
  • Adapter vertical clearance 460 mils
$170.00

Part Number Click Enlarge 32 Pin Adapters    Price Shopping Cart
32TS14-TS-ZO-SD ZIF open top socket to SMT pads for 32 lead TSOP package. ZIF open top socket to SMT pads for 32 lead TSOP package.
  • 32 Pins TSOP Type 1 Package
  • 14.0mm (551 mil) Tip to tip
  • 12.4mm (488 mil) Molded body width
  • 0.50mm (20 mils) pitch
  • Wired 1 to 1
  • Socket is Boyd 648A0322211-A01
  • Adapter vertical clearance 460 mils
  • Spare SMT base is part number 32TS14-SD
$190.00
32TS20-TS-ZO-SD ZIF open top socket to SMT pads for 32 lead TSOP package. ZIF open top socket to SMT pads for 32 lead TSOP package.
  • 32 Pins TSOP Type 1 Package
  • 20.0 mm Tip to tip
  • 0.5mm pitch
  • Wired 1 to 1
  • Socket is Boyd (Wells-CTI) number is 648-0322211
  • Spare SMT base is part number 32TS20-SD
  • Adapter vertical clearance 460 mils
$190.00

Part Number Click Enlarge 38 Pin Adapters    Price Shopping Cart
38TS06-TS-ZO-SDF ZIF open top socket to SMT pads for 38 lead TSOP package. ZIF open top socket to SMT pads for 38 lead TSOP package.
  • 38 Pins TSOP Type 1 Package
  • Compatible TSOP IC Package Drawing
  • 6.4 mm Tip to tip
  • 0.5mm pitch
  • Wired 1 to 1
  • Socket is Boyd (Wells-CTI) number is 656J0382212
  • Spare SMT base is part number 38TS06-SDF
  • Adapter vertical clearance 460 mils
$300.00

Part Number Click Enlarge 40 Pin Adapters    Price Shopping Cart
40TS14-TS-ZO-SD ZIF open top socket to SMT pads for 40 lead TSOP package. ZIF open top socket to SMT pads for 40 lead TSOP package.
  • 40 Pins TSOP Type 1 Package
  • 14.0mm Tip to tip
  • 0.50mm (20 mils) pitch
  • Wired 1 to 1
  • Socket is Wells 648A0402211-A01
  • Spare SMT base is part number 40TS14-SD
  • Adapter vertical clearance 460 mils
$210.00

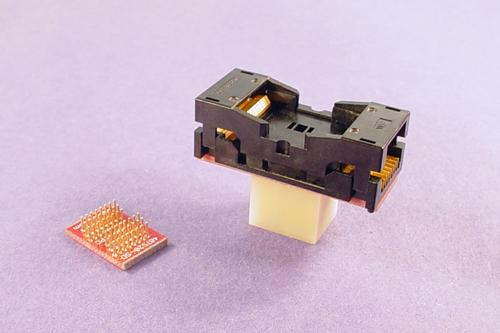

40TS20-TS-ZL-SD ZIF clam shell closed top socket to SMT pads for 40 lead TSOP package. ZIF clam shell closed top socket to SMT pads for 40 lead TSOP package.
  • 40 Pins TSOP Type 1 Package
  • 20.0mm Tip to tip
  • 0.5mm pitch
  • Wired 1 to 1
  • Socket is Yamaichi IC51-0402-1174-1
  • Spare SMT base is part number 40TS20-SD
  • Adapter vertical clearance 460 mils
$270.00

Part Number Click Enlarge 48 Pin Adapters    Price Shopping Cart
48TS20-TS-ZO-SD ZIF open top socket to SMT pads for 48 lead TSOP package. ZIF open top socket to SMT pads for 48 lead TSOP package.
  • 48 Pins TSOP Type 1 Package
  • 20.0mm Tip to tip
  • 0.5mm pitch
  • Wired 1 to 1
  • Socket is Boyd (Wells-CTI) number 648-0482211-A01
  • Spare SMT base is part number 48TS20-SD
  • Adapter vertical clearance 460 mils
$260.00

Part Number Click Enlarge 56 Pin Adapters    Price Shopping Cart
56TS20-TS-ZO-SD ZIF open top socket to SMT pads for 56 lead TSOP package. ZIF open top socket to SMT pads for 56 lead TSOP package.
  • 56 Pins TSOP Type 1 Package
  • 20.0mm Tip to tip
  • 14.0mm Package width
  • 0.5mm pitch
  • Socket is Boyd (Wells-CTI) number 648-0562211-A01
  • Wired 1 to 1
  • Spare SMT base is part number 56TS20-SD
  • Adapter vertical clearance 460 mils
$280.00

Part Number Click Enlarge 64 Pin Adapters    Price Shopping Cart
64TST2-56-TST2-ZO-SD ZIF open top socket to SMT pads for 64 lead TSOP Type 2 package. ZIF open top socket to SMT pads for 64 lead TSOP Type 2 package.
  • 64 Pins TSOP Package Type
  • 0.65mm (26 mils) pitch
  • Tip to Tip 12.0mm (472 mils)
  • Body width 10.16mm (400 mils)
  • Replacement ZIF socket is 696H26622113WE08
  • Available additional surface mount base part number is part number 64TS2-56-SD>
  • Adapter vertical clearance 460 mils
$310.00
